Soffit

Metal Soffit Panels

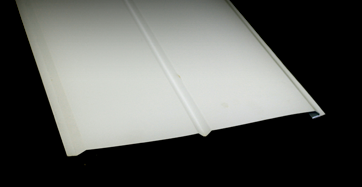

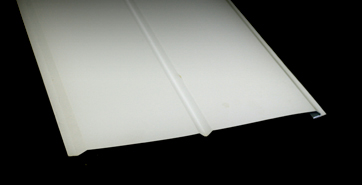

What is Soffit Panel?

Soffit panel is a 12” wide, interlocking concealed fastener panel that you see on the overhang of a building roof, on either the eave (low end) or gable (overhang that follows the roof angle from the low side up to the peak of the roof) or both.

These panels are installed to protect the exposed rafters and purlins from weather, animals and insects. Our vented soffit panels assist with air circulation. The design of our soffit panel has integrated stiffener v-joints to reinforce the strength and durability of this streamlined panel.

In addition to the traditional installation of soffit panels on overhangs of a building, soffit is fantastic for an interior shiplap use! The concealed fastener makes it clean and minimal, and we make it in any of our colors to complement your decor.



Panel Color Options

24 Gauge
Gotham Patina Low Gloss/Low Sheen (Teton)
Gun Metal Low Gloss/Low Sheen (Teton)
Galvalume Non-Painted (Teton)
24 Gauge Special Order (takes extra time)
Aged Copper (CMG)
Almond (Drexel)
Ash Gray (CMG)
Bone White (Drexel)
Bright White (CMG)
Burgundy (Drexel)
Burnished Slate (CMG)
Charcoal Gray (CMG)
Cityscape (CMG)
Classic Green (CMG)
Colonial Red (Drexel)
Copper Penny (CMG)
Copper-Ten Raw (Sheffield)
Cor-Ten AZP Raw (Sheffield)
Dark Bronze (Drexel)
Deep Black (CMG)
Dove Gray
Evergreen
Galv-Ten Raw (Sheffield)
Hartford Green (Drexel)
Hemlock Green (CMG)
Mansard Brown (Drexel)
Matte Black (CMG)
Medium Bronze (Drexel)
Musket Gray (CMG)
Patina Green (Drexel)
Pre-Weathered Galvalume (Drexel)
Rame Toscana (Low Gloss/Low Sheen)
Regal Blue
Regal Red (CMG)
Regal White (Drexel)
Royal Blue (CMG)
Sandstone (Drexel)
Sierra Tan (Drexel)
Silver Metallic (CMG)
Slate Blue (CMG)
Slate Gray (CMG)
Solar White (Sheffield)
Stone White (CMG)
Surrey Beige (Sheffield)
Teal Blue (Drexel)
Terra Cotta (Drexel)
Vintage (CMG)
Weathered Zinc (CMG)
Western Rust (CMG)
26 Gauge
Zincalume (Teton)
Beige (Teton)
Dark Brown (Teton)
Dark Gray (Teton)
Dark Green (Teton)
Hickory Moss (Teton)
Light Gray (Teton)
Light Stone (Teton)
Medium Brown (Teton)
Weathered Copper (Teton)
White (Teton)
26 Gauge Special Order (takes extra time)
Almond (Drexel)
Ash Gray (CMG)
Bone White (Drexel)
Burgundy (Drexel)
Burnished Slate (CMG)
Charcoal Gray (CMG)
Classic Green (CMG)
Colonial Red (Drexel)
Copper Penny (CMG)
Dark Bronze (Drexel)
Deep Black (CMG)
Dove Gray
Evergreen
Hartford Green (Drexel)
Mansard Brown (Drexel)
Matte Black (CMG)
Medium Bronze (Drexel)
Musket Gray (CMG)
Pebble Clay (CMG)
Regal White (Drexel)
Sandstone (Drexel)
Sierra Tan (Drexel)
Slate Blue (CMG)
Slate Gray (CMG)
Terra Cotta (Drexel)
29 Gauge
Beige (Teton)
Black (Teton)
Dark Green (Teton)
Dark Blue (Teton)
Hickory Moss (Teton)
Light Gray (Teton)
Light Stone (Teton)
Medium Brown (Teton)
Medium Green (Teton)
29 Gauge Special Order (takes extra time)
Burgundy (Drexel)
Copper Penny (CMG)
Forest Green (Drexel)
True Red

Available Gauges

24, 26, 29
* Certain colors may be subject to an order minimum and longer lead time. Please contact your Teton Steel representative to learn more.

Available Materials

Painted, Bonderized, Galvalume®, Western Rust, Galvanized G-90

Paint System

Durapon70™ PVDF, ULTRA CLAD™ Kynar500®/Hylar5000®

Warranties

Durapon70™ PVDF – 35 year
ULTRA-CLAD™ – 35 year
Zincalume® AZ50 – 20 year

Panel Characteristics
  • 12” wide coverage, ½” rib height
  • Concealed fastener
  • Lengths of 10’ or 12’ in 28/29 and 26 gauge (Teton colors only); and lengths of 10’ in 24 gauge (Teton and CMG colors only)
Fastener Application
  • Soffit panel can be applied over a solid substrate or over open purlins (Maximum free span is 24”)
  • Not for use on traditional sloped roofing surfaces
  • Use on building overhangs, underneath porches, or as a wainscot
