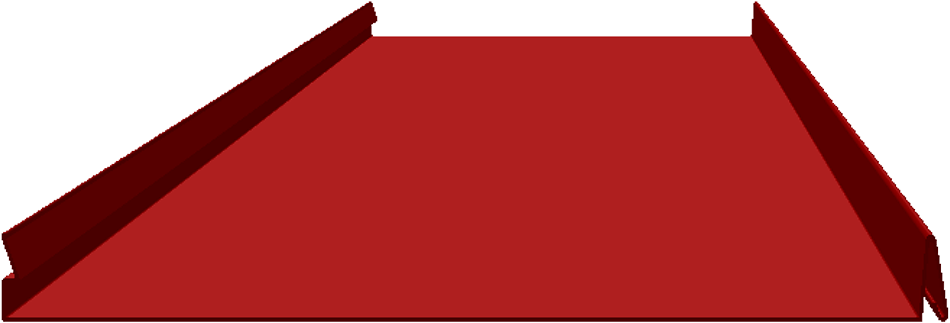

1.5″ Snap Lock

The Snap Lock panel has been an industry standard for many years and for good reason. This panel provides a lifetime of protection against all of mother natures elements. This true standing seam panel is manufactured in an 1” & 1.5” seam height. It is most commonly manufactured in widths of 16.9” & 15.4”. The width is dependent upon the height of the seam that is spec’d for the job, however this panel can be made into many different widths if required. Attributes: True Hidden Fastener Clip System, On-Site Rollforming, Architectural Appearance, High Wind Loads, Many Material Options.



Panel Color Options

24 Gauge
Aged Copper (CMG)
Aged Copper (Drexel)
Aged Copper (Sheffield)
Almond (CMG)
Antique Patina (Drexel)
Ash Gray (CMG)
Ash Gray (Sheffield)
Bone White (CMG)
Bone White (Drexel)
Bright Silver (Drexel)
Bright White (CMG)
Brilliance Red (Drexel)
Buckskin (Drexel)
Burgundy (CMG)
Burgundy (Drexel)
Burgundy (Sheffield)
Burnished Slate (CMG)
Champagne (CMG)
Champagne (Drexel)
Champagne (Sheffield)
Charcoal Gray Textured (Teton)
Charcoal Gray (CMG)
Charcoal Gray (Drexel)
Charcoal Gray (Sheffield)
Cityscape (CMG)
Classic Green (CMG)
Colonial Red (CMG)
Colonial Red (Drexel)
Colonial Red (Firestone)
Colonial Red (Sheffield)
Copper Penny (CMG)
Copper Penny (Drexel)
Copper Metallic (Sheffield)
Copper-Ten Raw (Sheffield)
Core Ten AZP Raw (Sheffield)
Dark Bronze (Teton)
Dark Bronze (CMG)
Dark Bronze (Drexel)
Dark Bronze (Sheffield)
Deep Black (CMG)
Deep Blue Sea (Drexel)
Dove Gray (Drexel)
Dove Gray (Sheffield)
Everglade Moss (Drexel)
Evergreen (Sheffield)
Forest Green (Drexel)
Galv-Ten Raw (Sheffield)
Gotham Patina Low Gloss/Low Sheen (Teton)
Gun Metal Low Gloss/Low Sheen (Teton)
Hartford Green (CMG)
Hartford Green (Drexel)
Hartford Green (Sheffield)
Island Blue (Drexel)
Mansard Brown (CMG)
Mansard Brown (Drexel)
Mansard Brown (Sheffield)
Matte Black (Teton)
Matte Black (CMG)
Matte Black (Drexel)
Matte Black (Sheffield)
Medium Bronze (Teton)
Medium Bronze (CMG)
Medium Bronze (Drexel)
Medium Bronze (Sheffield)
Musket Gray (CMG)
Pacific Blue (Drexel)
Patina Green (Drexel)
Patina Green (Sheffield)
Pre-Weathered Galvalume (Drexel)
Pre-Weathered Galvalume (Sheffield)
Rame Toscana (Low Gloss/Low Sheen)
Regal Blue (Sheffield)
Regal Red (CMG)
Regal Red (Sheffield)
Regal White (Drexel)
Regal White (Sheffield)
Royal Blue (CMG)
Sandstone (CMG)
Sandstone (Drexel)
Sandstone (Sheffield)
Sierra Tan (CMG)
Sierra Tan (Drexel)
Sierra Tan (Sheffield)
Silver Metallic (CMG)
Silver Metallic (Sheffield)
Slate Blue (CMG)
Slate Blue (Drexel)
Slate Blue (Sheffield)
Slate Gray (CMG)
Slate Gray (Drexel)
Slate Gray (Sheffield)
Solar White (Sheffield)
Stone White (CMG)
Stone White (Sheffield)
Surrey Beige (Drexel)
Surrey Beige (Sheffield)
Teal (CMG)
Teal Blue (Drexel)
Terra Cotta (CMG)
Terra Cotta (Drexel)
Terra Cotta (Sheffield)
Vintage (CMG)
Vintage (Sheffield)
Weathered Zinc (CMG)
Western Rust (CMG)
Galvalume Non-Painted (Teton)
26 Gauge
Aged Copper (Drexel)
Almond (CMG)
Antique Patina (Drexel)
Ash Gray (CMG)
Bone White (CMG)
Bone White (Drexel)
Bone White (Firestone)
Bright Silver (Drexel)
Brilliance Red (Drexel)
Buckskin (Drexel)
Burgundy (CMG)
Burgundy (Drexel)
Burnished Slate (CMG)
Champagne (Drexel)
Charcoal Gray (CMG)
Charcoal Gray (Drexel)
Charcoal Gray (Firestone)
Classic Green (CMG)
Colonial Red (CMG)
Colonial Red (Drexel)
Colonial Red (Firestone)
Copper Penny (CMG)
Dark Bronze (CMG)
Dark Bronze (Drexel)
Dark Bronze (Firestone)
Dark Ivy (Firestone)
Deep Black (CMG)
Deep Blue Sea (Drexel)
Everglade Moss (Drexel)
Forest Green (Drexel)
Hartford Green (Drexel)
Hartford Green (Firestone)
Hemlock (Drexel)
Island Blue (Drexel)
Mansard Brown (CMG)
Mansard Brown (Drexel)
Mansard Brown (Firestone)
Medium Bronze (CMG)
Medium Bronze (Drexel)
Medium Bronze (Firestone)
Matte Black (CMG)
Matte Black (Drexel)
Matte Black (Firestone)
Metallic Copper (Drexel)
Musket Gray (CMG)
Pacific Blue (Drexel)
Patina Green (Drexel)
Pebble Clay (CMG)
Regal Red (Firestone)
Pre-Weathered Galvalume (Drexel)
Regal White (Drexel)
Sandstone (Drexel)
Sandstone (Firestone)
Teal Blue (Drexel)
Sherwood Green (Firestone)
Sierra Tan (CMG)
Sierra Tan (Drexel)
Sierra Tan (Firestone)
Slate Blue (CMG)
Slate Blue (Drexel)
Slate Gray (CMG)
Slate Gray (Drexel)
Slate Gray (Firestone)
Stone White (Firestone)
Surrey Beige (Drexel)
Terra Cotta (CMG)
Terra Cotta (Drexel)
Terra Cotta (Firestone)

Available Gauges

24, 26

Weight

1.25lbs/SqFt (22
1.00lbs/SqFt (24
.75lbs/SqFt (26)

Substrate

AZ-50, Grade D, 50,000ksi

Paint Systems

Durapon70™ PVDF, ULTRA-CLAD™ Kynar500®/Hylar5000®

Warranties

Durapon70™ PVDF – 35 year
ULTRA-CLAD™ - 35 year
Zincalume® AZ50 – 20 year

Available Materials

Painted, Galvalume, ReziBond, 16 & 20 oz Copper

Minimum Slope

2:12

Testing

UL 580 Wind Uplift (Class 90)
UL 1897 Extended Phase Wind Uplift
UL 2218 Class 4 Hail Impact
UL 790 Class A Fire Rating

Fastener Application

Roof Application: Fastener Spacing:
12” and 24”, refer to engineering specifications for proper clip spacing and substrate specifications. Standing seam metal roofing can be used in conjunction with exposed fastener trim pieces or trim that is designed to reduce/ eliminate the need of exposed fasteners on the roofing surface. This designation must be made prior to production.

Panel Options

Flat Panel, Striations.
