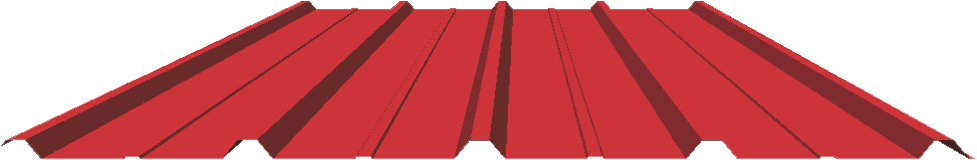

3′ Delta Rib



Panel Color Options

26 Gauge
Zincalume (Teton)
White (Teton)
Beige (Teton)
Dark Brown (Teton)
Dark Gray (Teton)
Dark Green (Teton)
Hickory Moss (Teton)
Light Gray (Teton)
Light Stone (Teton)
Medium Brown (Teton)
Weathered Copper (Teton)
29 Gauge
Zincalume (Teton)
White (Teton)
Weathered Copper (Teton)
Ivory (Teton)
Parchment (Teton)
Light Stone (Teton)
Beige (Teton)
Hickory Moss (Teton)
Desert Brown (Teton)
Medium Brown (Teton)
Dark Brown (Teton)
Light Gray (Teton)
Dark Gray (Teton)
Sky Blue (Teton)
Dark Blue (Teton)
Red (Teton)
Burgundy (Teton)
Medium Green (Teton)
Dark Green (Teton)
Forest Green (Teton)
Black (Teton)
Copper Penny (Teton)
Sedona Rust (Teton)
Rural Red (Textured)
Black Textured (Teton)
Charcoal Gray Textured (Teton)

Available Gauges

26, 29

Weight

1.98lbs/LnFt (29),
2.67lbs/LnFt (26)

Substrate

G-90, Grade 80

Paint System

Certified Cool, Energy Star® Rated, Silicone Modified Polyester

Warranties

Silicone Modified Polyester (SMP)
XT-40S – 40 Years
Galvalume – 20 years

Available Materials

Painted & Galvalume

Minimum Slope

3:12

Testing

UL 580 Wind Uplift (Class 90)
UL 790 Class A Fire Rating

Fastener Guide
  • #10 Woodfast screws are designed for use with dimensional lumber
  • #14 Wafer screws are designed for use with plywood sheeting, OSB, and wafer wood (7/16” minimum thickness)
  • #12 Tek Screws are designed to be used with structural steel up to 3/16” in thickness

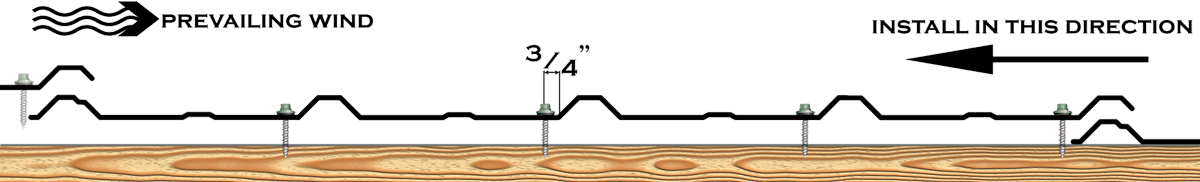

Fastener Application

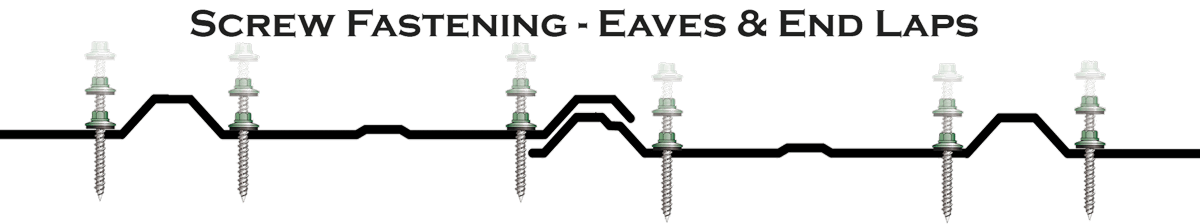

Screws are to be applied next to every rib and then up the panel, no more than 2’0”. On low slope roofs, Mastic Tape must be applied between the panel side laps with stitch screws installed every 1’0” up the panel. **At the eave or end laps, a double screw pattern should be with screws applied to both sides of the rib**
