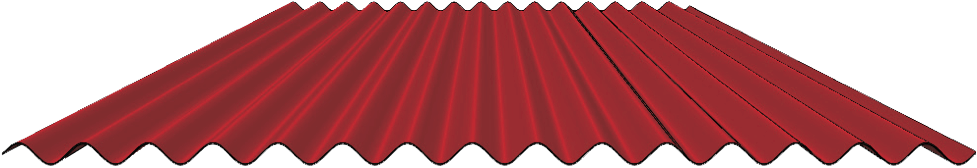

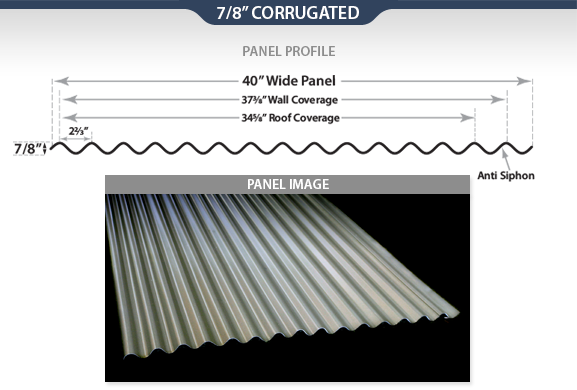

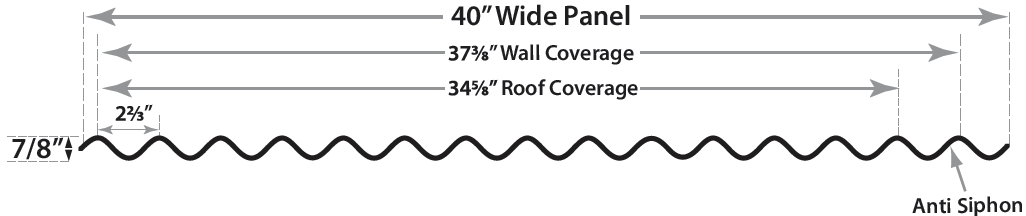

7/8″ Corrugated

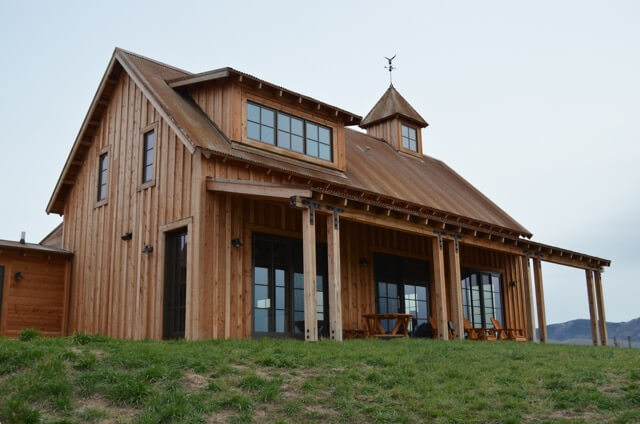

Corrugated panels are the cornerstone of metal roofing. This unique panel, with its distinctive and refined appearance, can give any project the look of class with superior function. This panel can be made in countless material types and gauges, including Core-Ten weathering steel and ReziBond®.





Panel Color Options

22 Gauge
Almond (CMG)
Almond (Firestone)
Bone White (CMG)
Bone White (Firestone)
Champagne Metallic (Firestone)
Charcoal Gray (CMG)
Charcoal Gray (Firestone)
Cityscape (Firestone)
Colonial Red (Firestone)
Dark Bronze (CMG)
Dark Bronze (Firestone)
Dark Ivy (Firestone)
Extra Dark Bronze (Firestone)
Hartford Green (CMG)
Hartford Green (Firestone)
Hemlock Green (Firestone)
Mansard Brown (CMG)
Mansard Brown (Firestone)
Matte Black (CMG)
Matte Black (Firestone)
Medium Bronze (CMG)
Medium Bronze (Firestone)
Regal Blue (Firestone)
Regal Red (Firestone)
Sandstone (CMG)
Sandstone (Firestone)
Sierra Tan (CMG)
Sierra Tan (Firestone)
Silver Metallic (Firestone)
Slate Gray (CMG)
Slate Gray (Firestone)
Teal (Firestone)
Terra Cotta (Firestone)
24 Gauge
Aged Copper (CMG)
Aged Copper (Drexel)
Aged Copper (Sheffield)
Almond (CMG)
Ash Gray (CMG)
Ash Gray (Sheffield)
Bone White (CMG)
Bone White (Drexel)
Brilliance Red (Drexel)
Buckskin (Drexel)
Burgundy (CMG)
Burgundy (Sheffield)
Burgundy (Drexel)
Burnished Slate (CMG)
Champagne (CMG)
Champagne (Drexel)
Champagne (Sheffield)
Charcoal Gray Textured (Teton)
Charcoal Gray (CMG)
Charcoal Gray (Drexel)
Charcoal Gray (Sheffield)
Cityscape (CMG)
Classic Green (CMG)
Colonial Red (CMG)
Colonial Red (Drexel)
Colonial Red (Sheffield)
Copper Penny (Metallic)
Copper Penny (CMG)
Dark Bronze (Teton)
Dark Bronze (CMG)
Dark Bronze (Sheffield)
Dark Bronze (Drexel)
Deep Black (CMG)
Deep Blue Sea (Drexel)
Dove Gray (Drexel)
Dove Gray (Sheffield)
Everglade Moss (Drexel)
Evergreen (Sheffield)
Forest Green (Drexel)
G-90 (Non-Painted)
Gotham Patina Low Gloss/Low Sheen (Teton)
Gun Metal Low Gloss/Low Sheen (Teton)
Hartford Green (CMG)
Hartford Green (Drexel)
Hartford Green (Sheffield)
Island Blue (Drexel)
Mansard Brown (CMG)
Mansard Brown (Drexel)
Mansard Brown (Sheffield)
Matte Black (Teton)
Matte Black (CMG)
Matte Black (Drexel)
Matte Black (Sheffield)
Medium Bronze (Teton)
Medium Bronze (CMG)
Medium Bronze (Drexel)
Medium Bronze (Sheffield)
Musket Gray (CMG)
Pacific Blue (Drexel)
Patina Green (Drexel)
Patina Green (Sheffield)
Rame Toscana (Low Gloss/Low Sheen)
Regal Blue (Sheffield)
Regal Red (CMG)
Regal Red (Sheffield)
Regal White (Drexel)
Regal White (Sheffield)
Royal Blue (CMG)
Sandstone (CMG)
Sandstone (Drexel)
Sandstone (Sheffield)
Sierra Tan (CMG)
Sierra Tan (Drexel)
Sierra Tan (Sheffield)
Slate Blue (CMG)
Slate Blue (Drexel)
Slate Blue (Sheffield)
Slate Gray (CMG)
Slate Blue (Drexel)
Slate Gray (Sheffield)
Solar White (Sheffield)
Stone White (CMG)
Stone White (Sheffield)
Surrey Beige (Drexel)
Surrey Beige (Sheffield)
Teal Blue (Drexel)
Terra Cotta (CMG)
Terra Cotta (Drexel)
Terra Cotta (Sheffield)
Vintage (CMG)
Vintage (Sheffield)
Weathered Zinc (CMG)
Western Rust (CMG)
Galvalume Non-Painted (Teton)

Available Gauges

22, 24
* Certain colors may be subject to an order minimum and longer lead time. Please contact your Teton Steel representative to learn more.

Weight

5.00lbs/LnFt (22)
4.00lbs/LnFt (24)

Substrate

AZ-50, Grade D, 50,000ksi

Available Materials

Painted, Galvalume, ReziBond®, Core Ten

Paint Systems

Durapon70™ PVDF, ULTRA-CLADTM Kynar500®/Hylar5000®

Warranties

Durapon70™ PVDF – 35 year, ULTRA-CLAD™ - 35 year, Zincalume® AZ50 – 20 year

Minimum Slope

3:12 with Bead Seal and Stitch Screws installed 1’0” up the panel at side laps. For maximum weather-tightness, screws should be installed on top of the wave pattern of the panel.

Testing

UL 580 Wind Uplift (Class 90)
UL 2218 Class 4 Hail Impact
UL 790 Class A Fire Rating

Fastener Guide:
  • #10 Woodfast screws are designed for use with dimensional lumber.
  • #14 Wafer screws are designed for use with plywood sheeting and , OSB (the preferred screw for use with this heavier-gauge panel), and wafer wood (7/16”minimum thickness)
  • #12 Tek Screws are designed to be used with structural steel up to 3/16” in thickness (also a preferred screw for this heavier-gauge panel).
Fastener Application:

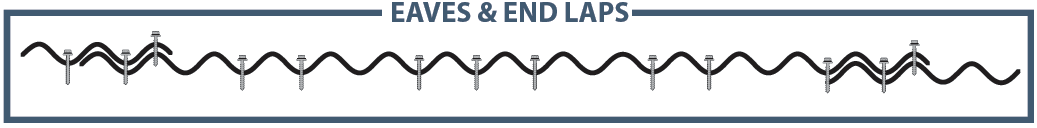

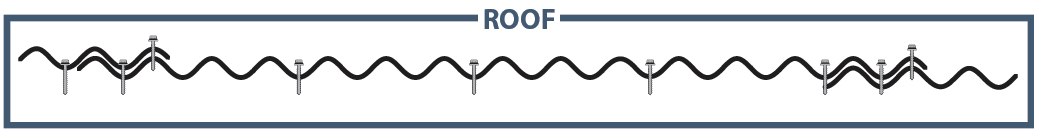

Roof Application: Screws are to be installed (Preferably on top of the wave pattern)  following the below details, installed no more than 3’6” up the panel. **Predrilling is recommended to ensure water tightness** It is recommended to use mastic tape between every panel at the side lap with stitched screws installed every 1’0” up the panel. Any slope below a 4:12 must use mastic tape and stitch screws.

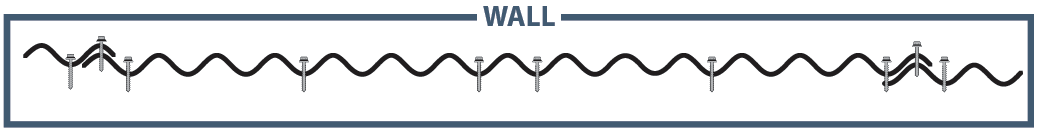

Wall Application: Screws are to be installed following the below details, installed no more than 3’6”up the panel. **Predrilling is recommended to ensure water tightness**

Wall Application:

Screws are to be installed following the below details, installed no more than 3’6” up the panel. **Predrilling is recommended to ensure water tightness**
