Standing Seam Metal Roofing Panels

1.5” Nail Strip

  • Install Level of Difficulty: Novice**
  • Available Gauges: 24 & 26
  • Panel Coverage: 15” & 16”
  • Seam Height: 1.5”
  • Minimum Slope: 3:12
  • Concealed Clip: No Clip (Rollformed in Panel)
  • Substrate: Solid Substrate

  • Testing:

UL 580 Class 90 Wind Uplift Rating
UL 2218 Class 4 Impact Rating
UL 790 Class A Fire Rating
**Testing for 24 Gauge Only**

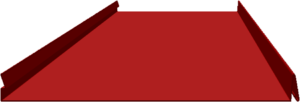

1.0” Snap Lock

  • Install Level of Difficulty: Intermediate**
  • Available Gauges: 22, 24 & 26
  • Panel Coverage: 13” & 17”
  • Seam Height: 1”
  • Concealed Clip: Required
  • Substrate: Solid Substrate & Open Framing (Purlins)
  • Testing:

UL 580 Class 90 Wind Uplift Rating
UL 2218 Class 4 Impact Rating
UL 790 Class A Fire Rating
**Testing for 24 Gauge Only**

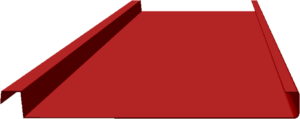

1” Mechanical

  • Install Level of Difficulty: Expert**
  • Available Gauges: 22, 24 & 26
  • Panel Coverage: 13.25″ & 17.25″
  • Seam Height: 1”
  • Minimum Slope: 3:12
  • Concealed Clip: Required
  • Substrate: Open Framing (Purlins) & Solid Substrate
  • Testing:

UL 580 Class 90 Wind Uplift Rating
UL 2218 Class 4 Impact Rating
UL 790 Class A Fire Rating
**Testing for 24 Gauge Only**

1” Nail Strip

  • Install Level of Difficulty: Novice**
  • Available Gauges: 24 & 26
  • Panel Coverage: 12”, 16” & 20”
  • Seam Height: 1”
  • Concealed Clip: No Clip (Rollformed in Panel)
  • Substrate: Solid Substrate
  • Testing: N/A

1.5” Snap Lock

  • Install Level of Difficulty: Intermediate**
  • Available Gauges: 24 & 26
  • Panel Coverage: 16” & 20”
  • Seam Height: 1.5”
  • Minimum Slope: 3:12
  • Concealed Clip: Required
  • Substrate: Solid Substrate
  • Testing: N/A

1.5” Mechanical

  • Install Level of Difficulty: Expert**
  • Available Gauges: 22, 24, & 26
  • Panel Coverage: 12.25″ & 16.25″
  • Seam Height: 1.5”
  • Minimum Slope: 1.5:12
  • Concealed Clip: Required
  • Substrate: Solid Decking
  • Testing: N/A
  • Special Notes: Radius Panels Available

**Standing Seam should be installed by someone with previous roofing knowledge and experience.
