Snap Lock



Panel Color Options

22 Gauge
Almond (Drexel)
Bone White (Drexel)
Charcoal Gray (CMG)
Dark Bronze (Drexel)
Mansard Brown (Drexel)
Matte Black (CMG)
Medium Bronze (Drexel)
Sandstone (Drexel)
Slate Gray (CMG)
24 Gauge
Aged Copper (CMG)
Almond (Drexel)
Ash Gray (CMG)
Bone White (Drexel)
Bright White (CMG)
Burgundy (Drexel)
Burnished Slate (CMG)
Charcoal Gray (CMG)
Cityscape (CMG)
Classic Green (CMG)
Colonial Red (Drexel)
Copper Penny (CMG)
Dark Bronze (Drexel)
Deep Black (CMG)
Hemlock Green (CMG)
Mansard Brown (Drexel)
Matte Black (CMG)
Medium Bronze (Drexel)
Musket Gray (CMG)
Patina Green (Drexel)
Pre-Weathered Galvalume (Drexel)
Rame Toscana (Low Gloss/Low Sheen)
Regal Red (CMG)
Royal Blue (CMG)
Sandstone (Drexel)
Silver Metallic (CMG)
Slate Blue (CMG)
Slate Gray (CMG)
Solar White (Sheffield)
Stone White (CMG)
Surrey Beige (Sheffield)
Teal Blue (Drexel)
Terra Cotta (Drexel)
Vintage (CMG)
Western Rust (CMG)
Galvalume Non-Painted (Teton)
26 Gauge
Almond (Drexel)
Ivory (Teton)
Ash Gray (CMG)
Black (Teton)
Bone White (Drexel)
Burgundy (Drexel)
Burnished Slate (CMG)
Charcoal Gray (CMG)
Classic Green (CMG)
Colonial Red (Drexel)
Copper Penny (CMG)
Dark Bronze (Drexel)
Dark Gray (Teton)
Mansard Brown (Drexel)
Matte Black (CMG)
Medium Bronze (Drexel)
Musket Gray (CMG)
Pebble Clay (CMG)
Sandstone (Drexel)
Slate Blue (CMG)
Slate Gray (CMG)
Terra Cotta (Drexel)

Available widths

1.5” Snap Lock: 15.875“ & 19.875”
1.75” Snap Lock: 13.875” & 17.875”

**Panel design pressures, wind uplifts, and test reports are for specic deck attachments, material gauges, clip spacing, and panel widths**

Available Gauges

22, 24, 26
* Certain colors may be subject to an order minimum and longer lead time. Please contact your Teton Steel representative to learn more.

Weight

1.5” Snap Lock:
1.00lbs/SqFt (24)
.75lbs/SqFt (26)

1.75” Snap Lock :
1.25lbs/SqFt (22)
1.00lbs/SqFt (24)
.75lbs/SqFt (26)

Substrate

AZ-50, Grade D, 50,000ksi

Available Materials

Painted, Galvalume, ReziBond®, Cold Roll, 16 & 20 oz Copper

Paint Systems

Durapon70™ PVDF, ULTRA CLAD™ Kynar500®/Hylar5000®

Warranties

Durapon70™ PVDF – 35 year
ULTRA-CLAD™ - 35 year
Zincalume® AZ50 – 20 year

Production Options

Either factory made to length with protective lm to ensure damage free transport or rolled to length on site*

**On site production is subject to order minimums**

Panel Options

Flat Panel, Striations, or Pencil Ribs

Testing For 1.75” Snap

UL 580 Wind Uplift (Class 90)
UL 2218 Class 4 Hail Impact
UL 790 Class A Fire Rating

Please Note: It is the responsibility of the builder
to ensure that they are compliant with current
building codes.

Please Note: It is the responsibility of the builder to ensure that they are compliant with current building codes.

1.5” Snap Lock

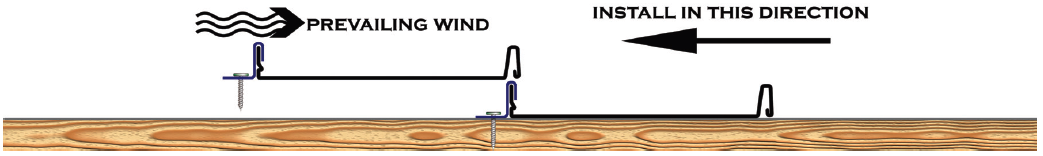

Installation: Can be installed on solid wood decking

Minimum Slope: 3:12

1.75” Snap Lock

Installation: Can be installed over open frame steel purlins, steel decking, steel decking with polyiso board, or solid wood decking

Minimum Slope: 2:12
